Pilot Beer Brewery Use 100L 200L 300L Micro Electrical Heating Beer Brewery Equipment System

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Jinan Yuxin Equipment Technology Co.,Ltd
[China]

Address
No.32 Shanda North Road, Jinan, China  Jinan Shandong
Phone
86-531-82378959
Contact name
Sharon Shi

Quick Information

  • Brand Name: YUXIN
  • Place of Origin: China
  • Model Number : YX-Brewery equipment
  • Processing Types : Carbonated Beverage
  • Product Name : Pilot Beer Brewery Use 100L 200L 300L Micro Electrical Heating Beer Brewery Equipment System
  • Material : Stainless Steel 304/316
  • Application : home/pilot brewing
  • Heating method : Electric
  • Control system : Semi-automatic
  • Volume Design : 25% head space at minimum
  • Inner Polishing Precision : Inner Polishing Precision
  • Process : TIG welding
  • Insulation : Polyurethane/ rock wool

Description

Pilot Beer Brewery Use 100L 200L 300L Micro Electrical Heating Beer Brewery Equipment System


Basic Overviews

100L 200L 300L Micro Beer Brewery Equipment System



Yuxin can provide complete beer brewing equipment for pub/restaurant beer brewing, micro beer brewery with diversity capacity from 100L~5000L, 1BBL~30BBL, to meet different demands of the market!



No matter you are a beginner or a skilled brewmaster in brewing beer, if you have passion for beer brewing, desire to have your own breweryYuxin will support you to realize your dream for brewing!

100L 200L 300L beer brewing equipment mainly for:

-Mini home beer brewing

-Pilot beer brewing

-Pub/restaurant brewing

-Small/micro size brewing beer plant

-Recipe test& brewing beer teaching



YX-Beer Brewing Equipment Overviews:

Capacity/batch 100L 200L 300L
Model YX-100L YX-200L YX-300L
Area 15M2 25M2 35M2
Power 8kw 12kw 20kw
Frementation cycle 8~20days 8~20days 8~20days



Note:1Hectolitre (HL)=100Liter; 1Barrel(BBL)=117Liter



Water supply: water supply, for mashing, cooling, cleaning

Electricity supply: 3-phase electricity

                            voltage/frequency adjust to your local power supply

Material: malted barley or wheat, hops, water




Product Description



100L 200L 300L Micro Beer Brewery Equipment System

Basic info:



Mashing system:

Malt grinder Capacity: 80~150kg/h Double roller type
Interior SUS304 Food and sanitary grade
Exterior SUS304/Copper
Raker  SUS304 1t/h,0.37kw
Agitator SUS304 Optional
Mayway SUS304 Top manway
Spent grain door SUS304 Side spent grain manway
Wort pump  SUS304 1T/H, 0.37kw, VFD controlled
Heating Electricity

Stainless steel heating elements

Temperature control  PT100
Sparging ring SUS304 Optional
False bottom SUS304 Milled sieve plate
Cleaning SU304 360° spary cleaning ball
Cooling Plate heat exchanger Stainless steel
Hot liquor tank SUS304 Optional
Trub strainer SUS304 Optional

 100L 200L 300L Micro Beer Brewery Equipment System  100L 200L 300L Micro Beer Brewery Equipment System

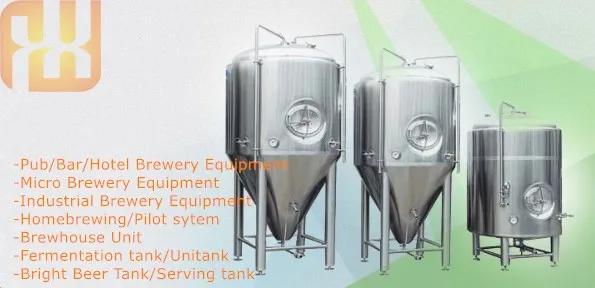

Fermentation system:

Fermenter  SUS304 Double wall
Interior SUS304 Thickness 2.5mm
Exterior SUS304 Thickness 1.5mm
Bottom cone 60 degree Beer outlet, drainage separately
Cooling method Glycol cooling Dimple jacket
Temperature  PT100
Pressure display Pressure gauge
Pressure relief SUS304 Pressure regulating valve
Cleaning SUS304

CIP arm with 360° spary cleaning ball

Insulation layer Polyurethane 70~80mm
Manway SUS304 Clamp or flange manway
Sampling valve SUS 304 Aseptic type, no dead coner
Dry hops adding port SUS304 Optional, clamp type
Carbonation device SUS304 Optional
Yeast adding tank SUS304 Capacity assort
Bright beer tank SUS304 Single or double walled available

  100L 200L 300L Micro Beer Brewery Equipment System   100L 200L 300L Micro Beer Brewery Equipment System





Necessary auxiliary system:

Cooling SUS304 300L/500L Glycol water tank
Chiller Branded 3HP
Glycol water pump Branded 1t/h, 0.37kw
Control  PID/PLC
Cleaning CIP/Portable pump Optional

100L 200L 300L Micro Beer Brewery Equipment System


Product Overviews

100L 200L 300L Micro Beer Brewery Equipment System

100L 200L 300L Micro Beer Brewery Equipment System

Packaging & Shipping

Packages:

1. LCL: Plastic film and bubble film, fumigation free wooden case

2. FCL: Plastic film and bubble film, iron frame if needed, necessary fixation

Suitable for shipping, up to export standard

Shipping:

Delivery to main port

100L 200L 300L Micro Beer Brewery Equipment System


Our Services

100L 200L 300L Micro Beer Brewery Equipment System

Why Us

100L 200L 300L Micro Beer Brewery Equipment System


Company Information

100L 200L 300L Micro Beer Brewery Equipment System

100L 200L 300L Micro Beer Brewery Equipment System100L 200L 300L Micro Beer Brewery Equipment System


Price

  • Delivery Port : Qingdao

Packaging & Delivery

  • Delivery Lead Time : 35 working days
  • Supply Ability : 35 working days
